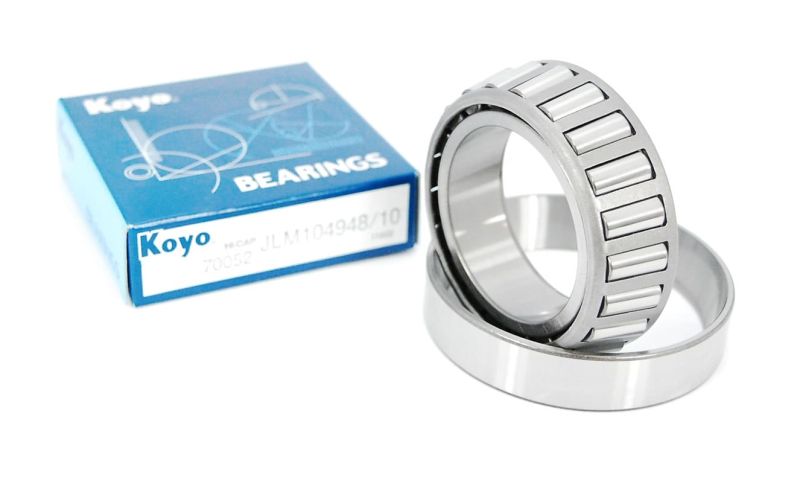

Koyo Inner Front Wheel Bearing
Larger bearing fitted in the back of the hub behind the seal - Superior quality OE ManufacturerSee more detail
Choose your vehicle to ensure compatibility
Add to Wishlist
Order by 15:00 mon-fri for same day dispatch.
28 Day returns or exchange.
1 Year Parts Warranty
The Inner front wheel bearing manufactured by Koyo, an OE manufacturer, fits all the various models listed in Specs.
This is the larger of the two wheel bearings fitted to the inner part of the front hub, the bearing hub seal needs to be removed in order to fit.
Taper Roller Race - JLM10948
Bearing Cup - JLM104910
This is one of the two taper roller bearings used in the Toyota front hubs, they take both rotary and lateral loadings and must be adjusted up correctly to the correct pre-load. All taper roller bearings come in two parts, the race containing the roller and the cup that the race will run on. They must be installed correctly and as a pair.
Use LM grease liberally on the bearings prior to fitting and check adjustment after use.
Koyo, a brand we all know and trust, is a Japanese manufacturer that has become one of the world's leading bearing suppliers to the automotive industry. Koyo, along with NSK, Nachi, and NTN, for example, are some of the preferred suppliers direct to Toyota so you can rest assured you are fitting some of the best bearings on the market.
|MPN (Manufacturer Part Number)||JLM104948/10|
|OE Equivalent Part Number||90080-36064, 90368-49084|
|Warranty Options||1 Year Parts Warranty|
|Fitting Position||Front hub|
|Unit of Sale||Individually|
Below are a list of compatible vehicle for this product.
- Toyota Hilux Pickup LN65R 2.4cc (2L) Diesel RHD (A - F reg, 8/1983-7/1988) UK Mk2
- Toyota Hilux Pickup YN65R 2.0cc (3Y) Petrol RHD (A - D reg, 8/1983-8/1985) UK Mk2
- Toyota Hilux Pickup YN67R 2.2cc (4Y) Petrol RHD (C - L reg, 8/1985-7/1988) UK Mk2
- Toyota Hilux Pickup LN105R 2.4cc (2L) Diesel RHD (F - R reg, 8/1988-7/1997) UK Mk3
- Toyota Hilux Pickup YN106R 2.2cc (4Y) Petrol RHD (F - R reg, 8/1988-8/1997) UK Mk3
- Toyota Hilux Pickup LN106 2.8cc (3L) Diesel RHD (F - R reg, 8/1988-8/1997) Import
- Toyota Hilux Pickup LN107 2.8cc (3L) Diesel RHD (J - R reg, 8/1991-8/1997) Import
- Toyota Hilux Pickup LN109 2.8cc (3L) Diesel RHD (F - R reg, 8/1994-8/1997) Import
- Toyota Hilux Pickup LN110L 2.4cc (2L) Diesel LHD (F - R reg, 1988-1997) Import Mk3
- Toyota Hilux Pickup LN165R 2.4cc (2LT) Turbo Diesel RHD (R - Y reg, 8/1997-7/2001) UK Mk4
- Toyota Hilux Pickup LN166R 2.8cc (3L) Diesel RHD (R - 06 reg, 8/1997-2006) Import
- Toyota Hilux Pickup LN167 3.0cc (5L) Diesel RHD (R - 05 reg, 8/1997-7/2001) Import
- Toyota Hilux Pickup LN172 3.0cc (5L) Diesel RHD (R - 05 reg, 8/1997-7/2004) Import
- Toyota Hilux Pickup KZN165 3.0cc (1KZTE) Turbo Diesel RHD (V - 54 reg, 9/1999-2005) Import
- Toyota Hilux Pickup KDN165R 2.5cc (2KDFTV) Turbo Diesel (D4D) RHD (51 - 55 reg, 8/2001-7/2005) UK Mk5
- Toyota Hilux Surf LN130 2.4cc (2LT) Turbo Diesel RHD/LHD (F - L reg, 1988-8/1993) Import
- Toyota Hilux Surf KZN130 3.0cc (1KZTE) Turbo Diesel RHD (L - N reg, 8/1993-11/1995) Import
- Toyota Hilux Surf VZN130 3.0cc (3VZE) V6 Petrol RHD (H - N reg, 8/1993-11/1995) UK/Import
- Toyota Hilux Surf 4Runner KZN130 3.0cc (1KZT) Turbo Diesel RHD (L - N reg, 8/1993-11/1995) UK
- Toyota Land Cruiser LJ70R 2.4cc (2LT) Turbo Diesel RHD (D - G reg, 1986-1/1990) UK
- Toyota Land Cruiser LJ70R 2.4cc (2LT) Turbo Diesel RHD (G - K reg, 1/1990-5/1993) UK
- Toyota Land Cruiser LJ71 2.4cc (2LT) Turbo Diesel RHD (C - G reg, 1986-1/1990) Import
- Toyota Land Cruiser LJ71 2.4cc (2LTE) Turbo Diesel RHD (G - K reg, 1/1990-5/1993) Import
- Toyota Land Cruiser LJ78 2.4cc (2LTE) Turbo Diesel RHD (G - K reg, 4/1990-5/1993) Import
- Toyota Land Cruiser KZJ70R 3.0cc (1KZT) Turbo Diesel RHD (K - N reg, 5/1993-4/1996) UK
- Toyota Land Cruiser HDJ80R 4.2cc (1HDT) Diesel (12 Valve) RHD (G - L reg, 1/1990-7/1994) UK
- Toyota Land Cruiser HDJ80R 4.2cc (1HDFT) Diesel (24 Valve) RHD (M - S reg, 1/1995-1/1998) UK
- Toyota Land Cruiser HDJ81 4.2cc (1HDT) Diesel (12 Valve) RHD (G - M reg, 1/1990-1/1995) Import
- Toyota Land Cruiser HDJ81 4.2cc (1HDFT) Diesel (24 Valve) RHD (M - S reg, 1/1995-1/1998) Import
- Toyota Land Cruiser FZJ80 4.5cc (1FZFE) Straight-6 Petrol (EFI) RHD (K - S reg, 1/1990-1/1998)
