Pedders Uprated Front Strut Top Mount
Choose your vehicle to ensure compatibility
Add to Wishlist
Order by 15:00 mon-fri for same day dispatch.
28 Day returns or exchange.
1 Year Parts Warranty

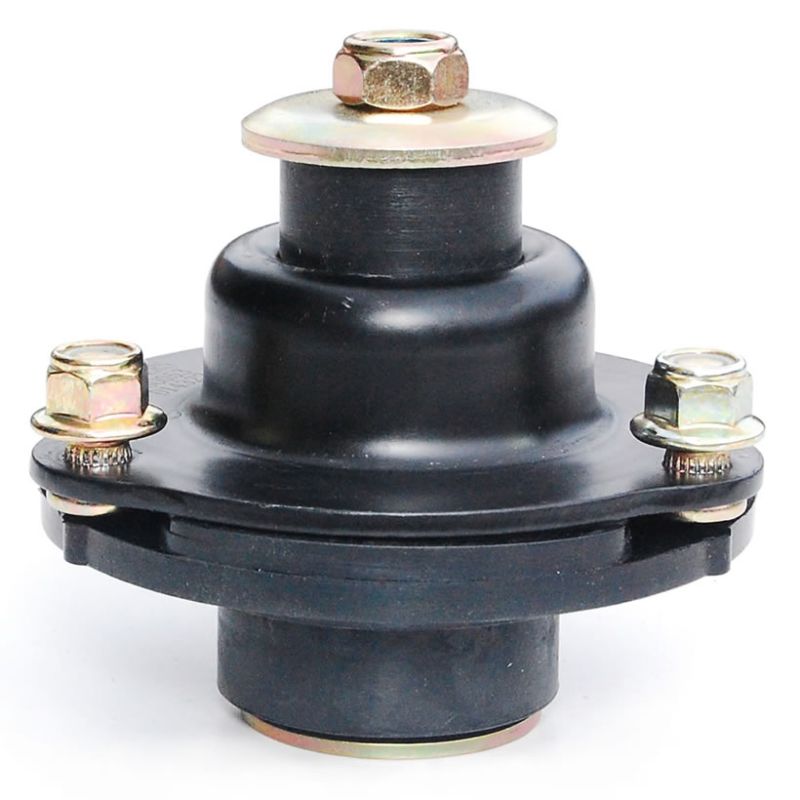

A new top strut mounting plate with bushes and washers for the Hilux pickups KUN25, KUN26 & GUN125, GUN126 also Land Cruiser 120 series as listed.
This mounting plate from Australia is an up-rated version. It features a huge lower mounting rubber that take's most of the strain once fitted and is far larger than the original, it also comes with the flat lower washer that would normally fit underneath the large lower bush, a stronger top rubber mount with cup washer and 3 new studs/nuts to secure the strut to the chassis. The metal pressed steel mounting also has a rubber seat that the coil spring will seat against.
- The kit also comes with a new shock top nut, however, this is only designed for the Pedders shock so ensure you use the original nut that comes with the shock absorber.
- If the shock you are fitting this top mount too already has a strong large flat washer within the piston guard then there is no need to use the flat washer supplied within the kit, as long as the large lower rubber mounting sits on a flat base washer.
- It is advisable to use these heavy-duty top mounting's, especially when fitting with uprated coil springs, see 'Questions & Answers' for some fitting tips.
One mounting per shock is required.
|MPN (Manufacturer Part Number)||580053|
|OE Equivalent Part Number||48609-60030, 48609-60100, 48609-0K040|
|Warranty Options||1 Year Parts Warranty|
|Fitting Position||Bolts on top of the front shock, securing the spring.|
|Unit of Sale||Sold Individually!|
Below are a list of compatible vehicle for this product.
- Toyota Hilux Pickup KUN25R 2.5cc (2KDFTV) Turbo Diesel (D4D) RHD (55 - 61 reg, 7/2005-8/2011) Mk6
- Toyota Hilux Pickup KUN25R 2.5cc (2KDFTV) Turbo Diesel (D4D) RHD (61 - 66 reg, 7/2011-2016) Mk7
- Toyota Hilux Pickup KUN26R 3.0cc (1KDFTV) Turbo Diesel (D4D) RHD (56 - 61 reg, 10/2006-8/2011) Mk6
- Toyota Hilux Pickup KUN26R 3.0cc (1KDFTV) Turbo Diesel (D4D) RHD (61 - 66 reg, 7/2011-2016) Mk7
- Toyota Hilux Pickup GUN125R 2.4cc (2GD-FTV) Turbo Diesel (D4D) RHD (16 - ON reg, 4/2016-ON) Mk8
- Toyota Land Cruiser KDJ120R (LWB) 3.0cc (1KDFTV) Turbo Diesel (D4D) RHD (52 - 09 reg, 9/2002-12/2009) Prado
- Toyota Land Cruiser KDJ125R (SWB) 3.0cc (1KDFTV) Turbo Diesel (D4D) RHD (52 - 09 reg, 9/2002-12/2009) Prado
Delivery Information - Cut-off Time 15:00 Monday-Friday
RoughTrax provide a number of different delivery methods.
2-5 Working Days
FedEx / Parcelforce / Royal Mail
FREE OVER £90*
2-5 Working Days
Next Day Service
FedEx / Parcelforce
*Excludes Islands and some Scottish postcodes where surcharges apply, click here for exclusions. Free delivery is not valid on any telephone order.
PLEASE NOTE: Orders placed before 15:00 weekdays will be dispatched on the same day subject to stock and points below. Orders placed after 15:00 on Friday or over the weekend will be dispatched on the following Monday.
If you wish to make any additions or alternations to your initial order you will need to let us know before 12.00 noon.
We are closed over Bank Holidays.
For full details please visit to our Deliveries page.
International Delivery – Cut-off 12 Noon Monday-Friday
RoughTrax offers fast, reliable, and affordable service as standard, we make sending your international order easy with an online tracking system sent straight to your email once despatched.
To confirm a delivery price simply add products to your basket, select your country and enter your postcode in the delivery field. The website will automatically calculate your delivery price. Goods can be sent worldwide.
All International orders are sent with FedEx, Parcelforce or DHL depending on the product/s & service you have selected.
For full details please visit our International Deliveries page.
Arrange Own Courier
If a delivery method is not available, an option of “Arrange My Own Courier” will display. This enables you to order through the website and arrange your own courier for your goods to be collected directly from RoughTrax in Bristol, UK.
For full details please visit to our Arrange My Own Courier page.
At RoughTrax we know that sometimes you will need to return items.
- All products must be re-sellable and returned along with the original packaging and documents. (Stock to order or Special order items are non-returnable).
- Goods must be returned within 28 days of purchase as per our Terms and Conditions
- Products must be returned to RoughTrax at RoughTrax Ltd, Units 4-7 Pixash Business Centre, Pixash Lane, Keynsham, Bristol. BS31 1TP United Kingdom
If Returned parts that qualified for Free Delivery.
If you return a product(s) that qualified you for Free Delivery and the remainder of your order does not exceed the £90 Free Delivery Promotion, then RoughTrax reserve the right to charge carriage for the remaining products purchased to cover the carriage cost.
Please visit our Returns page to download a returns form and for further information.
Questions & Answers for Pedders Uprated Front Strut Top Mount
Can these Pedders top mounts be used on other branded shock absorbers such as Monroe for example?
Yes, however, the Pedders top mount kit will come with a nut to suit the Pedders shock absorber, ALWAYS use the top mounting nut that comes with the shock absorber you are fitting the mount too.
Is there a specific way to mount the washers etc?
Yes, here are some useful tips:
- Fit the large rubber bush into the metal top mount that has the 3 studs in (this can only be fitted one-way)
- A flat surface must always go against this large base bush so use the flat washer on the shock first (not a cup washer) - NB. If your shock absorber already has a flat surface to go against the large base bush such as with the Monroe that has a washer built into the piston shield, then you don't need another washer.
- once installed the smaller rubber bush fits on top the mount followed by a cup washer (face down)
- Fit the top nut that comes with the Shock absorber only - Pedders top nuts only fit Pedders shocks.
- The image we have taken shows the basic setup
