Front Brake Caliper R/H - models without VSC
Fits Chassis starting AHT from 09/2008 and MRO from 01/2012
See more detailChoose your vehicle to ensure compatibility | Choose Vehicle |
Add to Wishlist
Order by 15:00 mon-fri for same day dispatch.
28 Day returns or exchange.
1 Year Parts Warranty
A new Right Hand, drivers side Front Brake Caliper for the Hilux Surf Pickup KUN25 & KUN26 Without Vehicle Stability Control (VSC) from the date codes listed below. The new caliper comes complete with pad pins and the retainer clip.
Our useful blog may help you determine if you have VSC fitted or not.
Fits Models:
WITHOUT vehicle stability control (VSC)
Mk6 Hilux pickup KUN25 & KUN26 with chassis numbers as follows - (please check this on your chassis plate)
- Chassis number starting with AHT from September 2008-ONWARDS
- Chassis number starting with MRO from January 2012 -ONWARDS
- Caliper has a pad opening height of 143mm - please see images - Use pads PAD013 or PAD013G
About the Caliper:

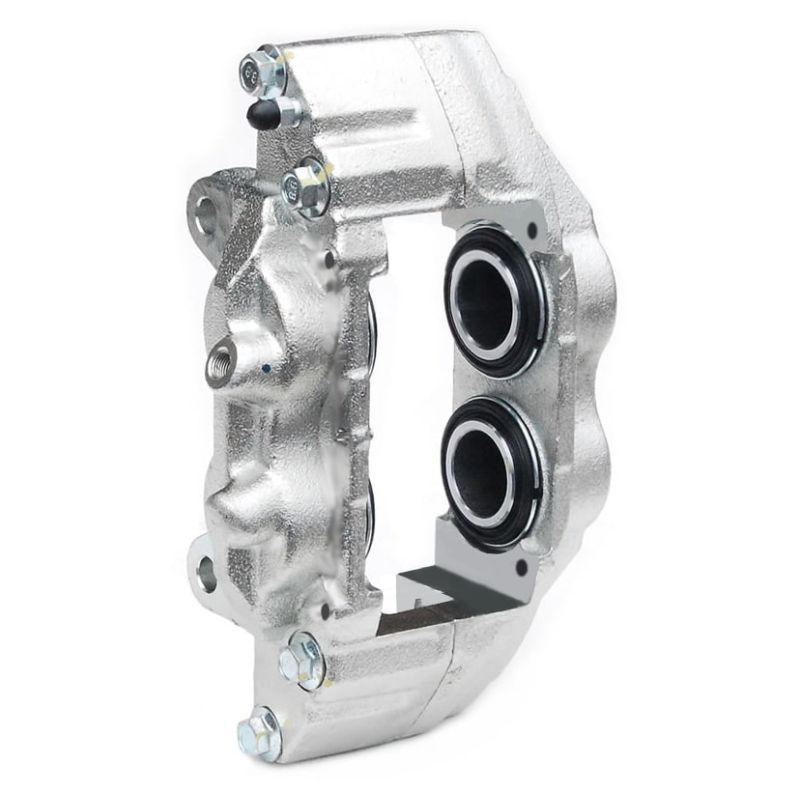

- This a fixed “4 pot” (4 piston) brake caliper. As the name suggests it is fixed to the hub via two bolts so that the pistons are arranged on opposite sides of the brake disc providing maximum performance. All 4 pistons are the same size. This later caliper for the non-VSC models is very distinctive in that it is very large, it uses the largest 143mm brake pad and the overall height of the caliper is some 255mm.
- Each side of the caliper has 2 pistons acting on each brake pad which provides increased braking efficiency.
- Pads are held in by 2 brake pad pins and a retaining clip that come with the caliper. Applying a smear of “Copper Slip” grease to the pins and back of the brake pads will help with brake squeal or the pad sticking when the caliper is in operation.
- A common brake caliper fault is that one or more pistons start to seize and stick (usually down to a split dust seal), this in turn, can create brake pull under braking or excessive heat build-up between pads and discs whereby the pad is held against the disc. When the pedal is released the caliper pistons should retract smoothly clearing the pad from the disc.
- A sticking piston can be the cause of a warped or badly worn disc and pad, it’s also usually the cause of imbalanced front braking.
SAJones Co. Ltd:
With over 30 years in the business, SAJones from Taiwan has been manufacturing brake calipers, masters, and clutch hydraulics for the automotive industry. Their strong R&D team develop and follow the reverse engineering procedure ensuring each and every caliper is to the exacting specifications of the original.
They are a proudly Certified TS16949 Company showing commitment to quality, essential in the manufacture of such components. They exhibit their brand and products throughout the world and are widely recognised in the industry.
RoughTrax has been supplying their product for well over 10 years now and find their product to be equal to many leading brands but without the price tag!
Weight | 5.680000 |
---|---|
Manufacturer | SA Jones |
MPN (Manufacturer Part Number) | BCA022 |
OE Equivalent Part Number | 47730-0K180 47730-0K190 |
Warranty Options | 1 Year Parts Warranty |
Date Codes | See Description |
Fitting Position | Front Right Hand / Offside / Drivers |
Unit of Sale | Sold Individually |
Specs & Fitment | Fits models: |
Vehicle Compatibility
Below are a list of compatible vehicle for this product.
- Toyota Hilux Pickup KUN25R 2.5cc (2KDFTV) Turbo Diesel (D4D) RHD (55 - 61 reg, 7/2005-8/2011) Mk6
- Toyota Hilux Pickup KUN25R 2.5cc (2KDFTV) Turbo Diesel (D4D) RHD (61 - 66 reg, 7/2011-2016) Mk7
- Toyota Hilux Pickup KUN26R 3.0cc (1KDFTV) Turbo Diesel (D4D) RHD (56 - 61 reg, 10/2006-8/2011) Mk6
- Toyota Hilux Pickup KUN26R 3.0cc (1KDFTV) Turbo Diesel (D4D) RHD (61 - 66 reg, 7/2011-2016) Mk7
