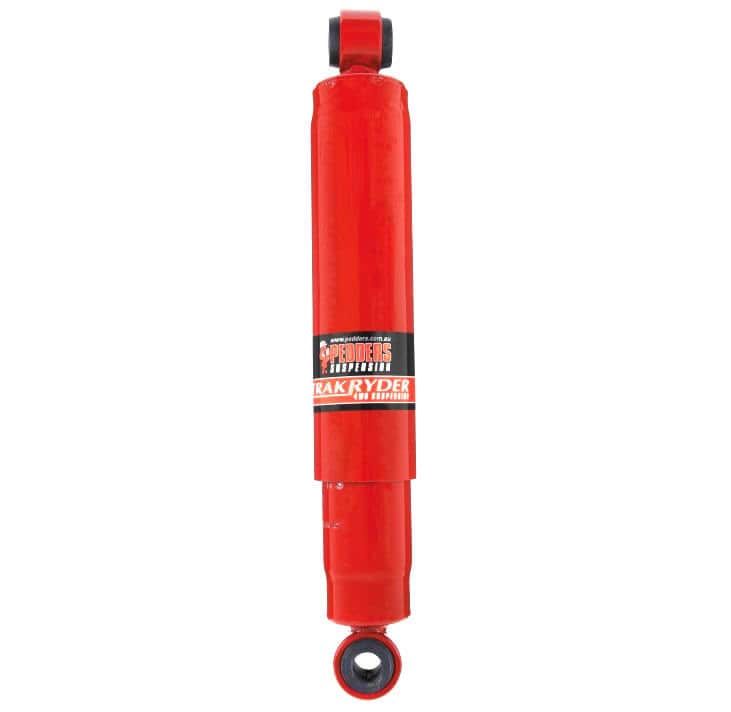

Pedders Foam Cell Rear Shock Absorber for 2.5" Lift

The Hilux Pickup Mk2, Mk3, Mk4, Mk5, LN106 & LN107 Pedders Trak-Ryder 9500 Series shock absorber for trucks with 2.5" Suspension Lift.
This is a twin tube foam cell construction and reinforced double welded mountings offering even more precise valve settings crucial for keeping heavy 4WD suspension systems under control whilst still maintaining a comfortable ride and offering precise handling. Designed and manufactured specifically for 4x4’s to provide the requirements for tricky off-road driving or heavier loads that require a bit more fortitude from your suspension for raised vehicles on & off-road.

With its huge 17mm sintered hardened piston, 41mm internal bore, and 61mm external bore this shock is perfect for both general purpose road and off-road use. It uses foam cell technology to enable consistent and precise ride control without compromising on ride comfort in the most extreme terrains.

As with all shocks supplied, paint is not covered under warranty due to the very nature and position of the component

The advantage of a twin tube design like the Pedders Trak-Ryder, especially in off-road conditions is that if any large stones are flicked up off the road and come into contact with the body of the shock absorber and dent it, it will not affect the operation of the shock absorber.

Foam Cell shock absorbers provide the ultimate off-road ride that won’t give out or bounce your head into the roof. They are engineered to virtually eliminate shock fade by allowing full oil contact with both the inner and outer housings, by the way of a Cellular Foam Membrane. This provides larger cooling areas to improve shock performance and durability.

The foam-cell damper is full of oil, with no free-air space at all. The foam membrane compresses on the downward stroke of the piston, allowing for the oil volume increase caused by displacement as the shaft enters the tube.

Foam-cell shock absorber contains a bushed pilot bearing that allows the shock absorber to sustain greater side loadings without damaging the top seal. There is also a pilot bearing slip ring that restricts oil bypass between the shaft and the pilot bearing.

Trak-Ryder shock absorbers are a high performance, heavy duty replacement unit, which delivers a new standard of comfort and road holding ability for your 4WD. Ideal for the motorists who are after that extra performance and sports handling.

Pedders Trak-Ryder 9500 series shocks comprise of a hydraulic 'top-out' buffer that prevents metal-to-metal contact if the shock absorber is over-extended.

Important NB:
Always check the shock absorber open and closed dimensions that we list in Specs & Fitment to ensure correct fitment with your model. As a rule, shocks must not restrict suspension movement.
Foam Cell shock absorbers do not expand out on their own - this is their design, not a fault.
Shocks do not lift the vehicle.

• Foam Cell Technology
• Hydraulic "Top Out" Buffer
• 41mm Internal Bore
• 61mm External Bore
• 17mm Sintered Iron Piston
• Reinforced Double Welded Mountings
• Direct OE Fitment
• Heavy Duty Construction
• Compatible with approx. 2.5" Lift
